MODEL 557

3X4 DROP DECK WIDENER - WIDE SPREAD
Maximum Trailer Capactity
45,000Kg
Legal Payload on Tri Group
27,000Kg
Widening and Weights
Decks widen to 4m and are fully rated at maximum width
Approx. Tare Weight
11.8 - 13.5 tonnes, depending on options fitted
ENQUIRE NOW
PLAY VIDEO

Lightboards

Auto Tensioner

Motor Hydraulics

Oil / Water Tanks

Tie Downs

Wnch Head Board

STANDARD INCLUSIONS

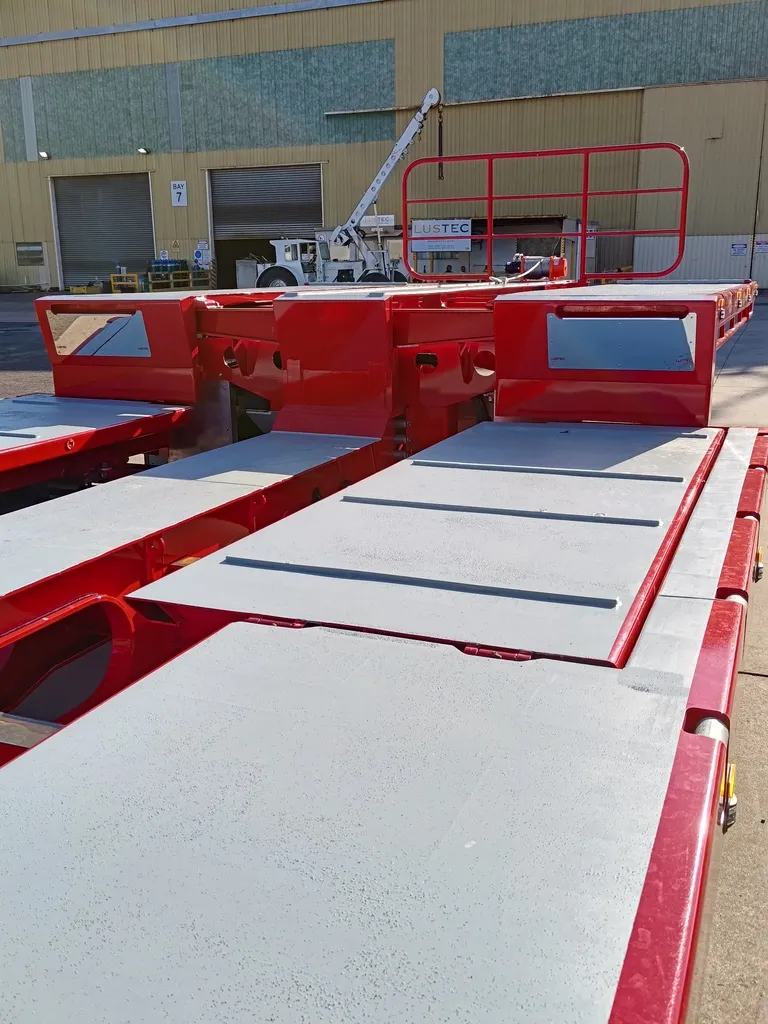

Decks widen to 4m and are fully rated at maximum width
ENQUIRE NOW
Gooseneck
Double king pin non-oscillating skid plate with fold over decks and fold down ramps

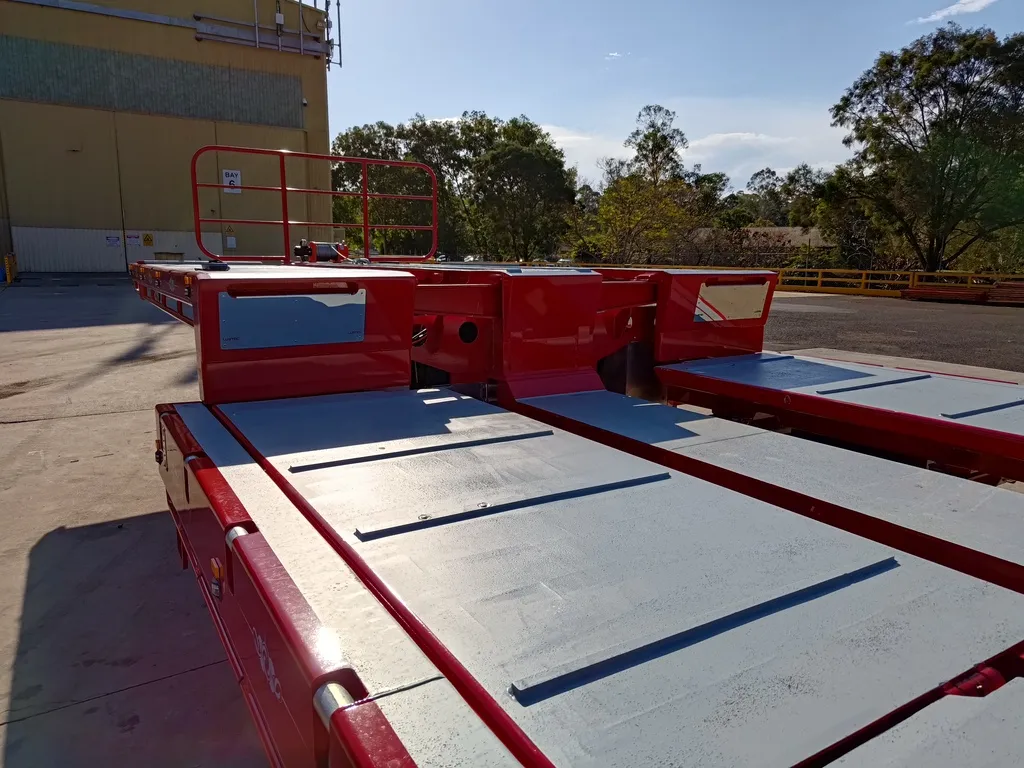

Main Deck
920mm wide outer decks allow the trailer to widen from 2.5 metres to 4 metres. Decks widen using hydraulic phasing cylinders
Tie Down Points
Equipped with 6 tonne load rated swivelling tie down points recessed into the coaming

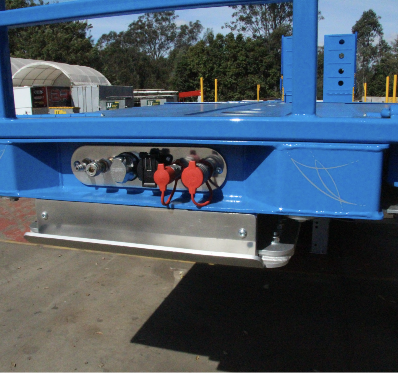

Ringfeder Bracket
Equipped with bracket only. Hydraulic, air and electrical lines run to the bracket bulkhead

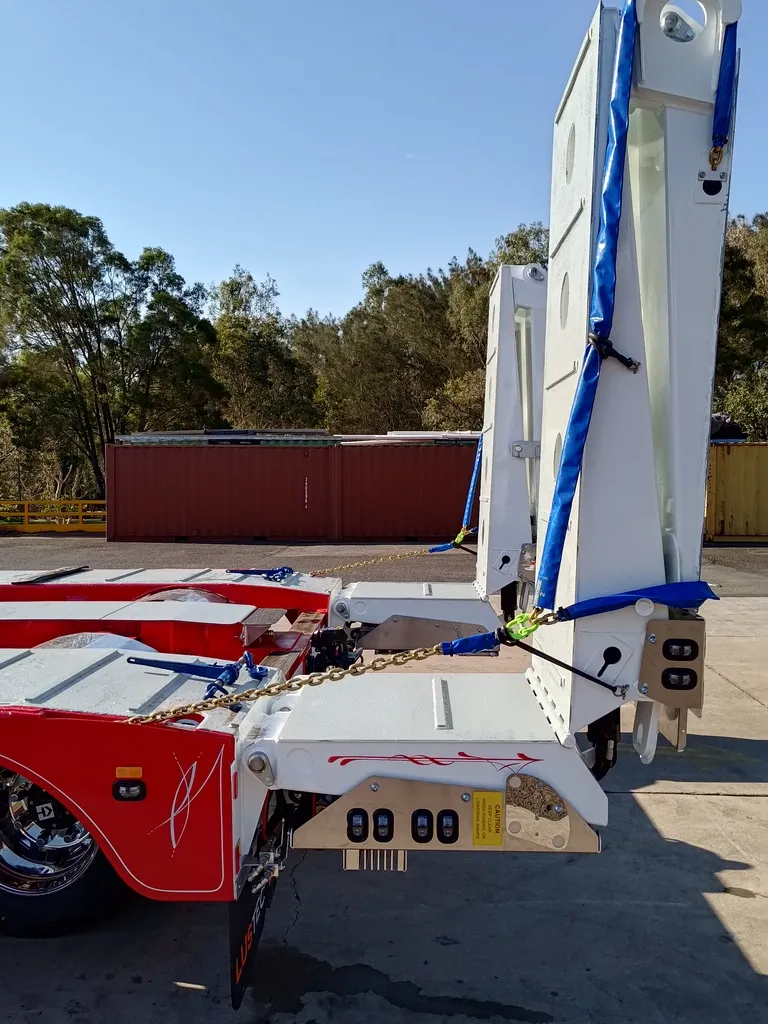

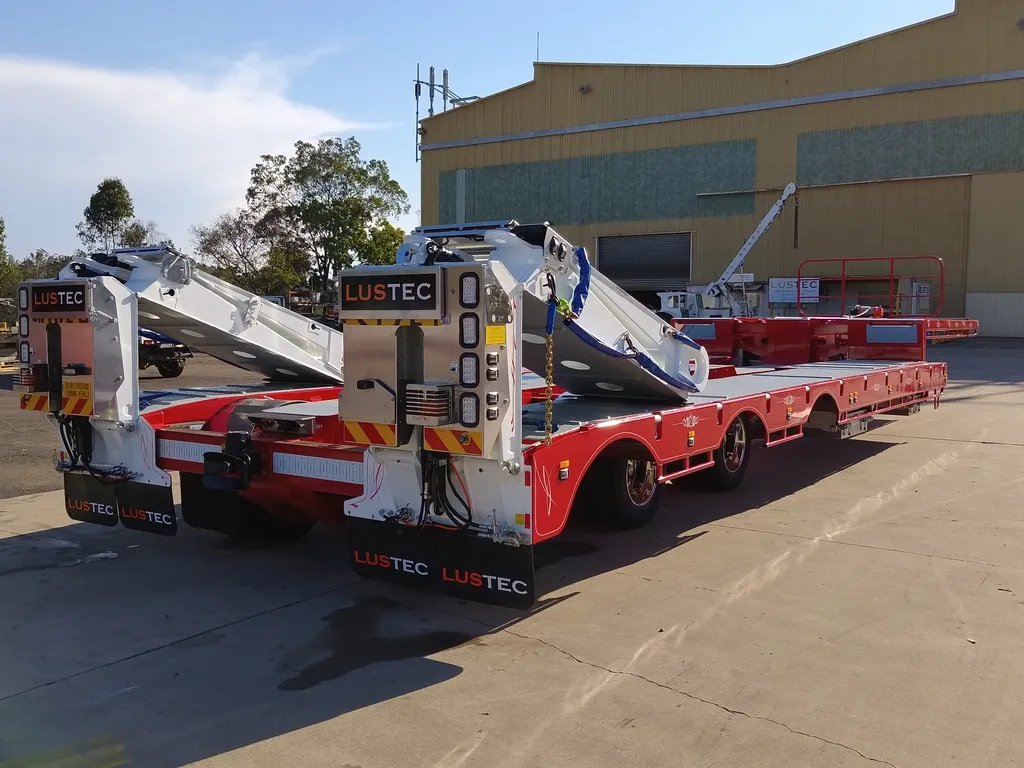

Ramps
Bi-fold - fabricated from Grade 700 plate with 25mm x 12mm grip lugs

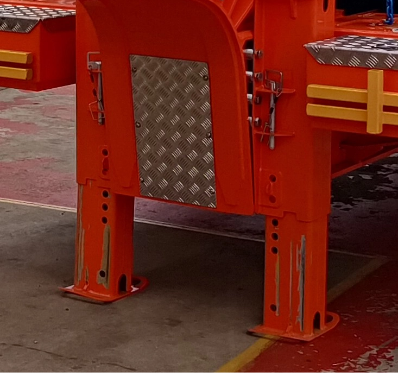

Legs
Hydraulic landing legs with manual and remote control
Axles & Suspension
K-Hitch air bag suspension with K-Hitch drum brake axles
Hydraulic Pressure
Kohler Petrol 7HP

CUSTOMISE OPTIONS

We Have A Large Range Of Options To Personalise Your New Lustec Float. Please Talk To Our Team About Any Requests You May Have. Listed Below Is A Small Sample Of What We Can Do.
Lighting
Extra side lights. LED work lights
Top of Decks
Extra tie down points. Rubber on decks. Drop wells with removable infill panels

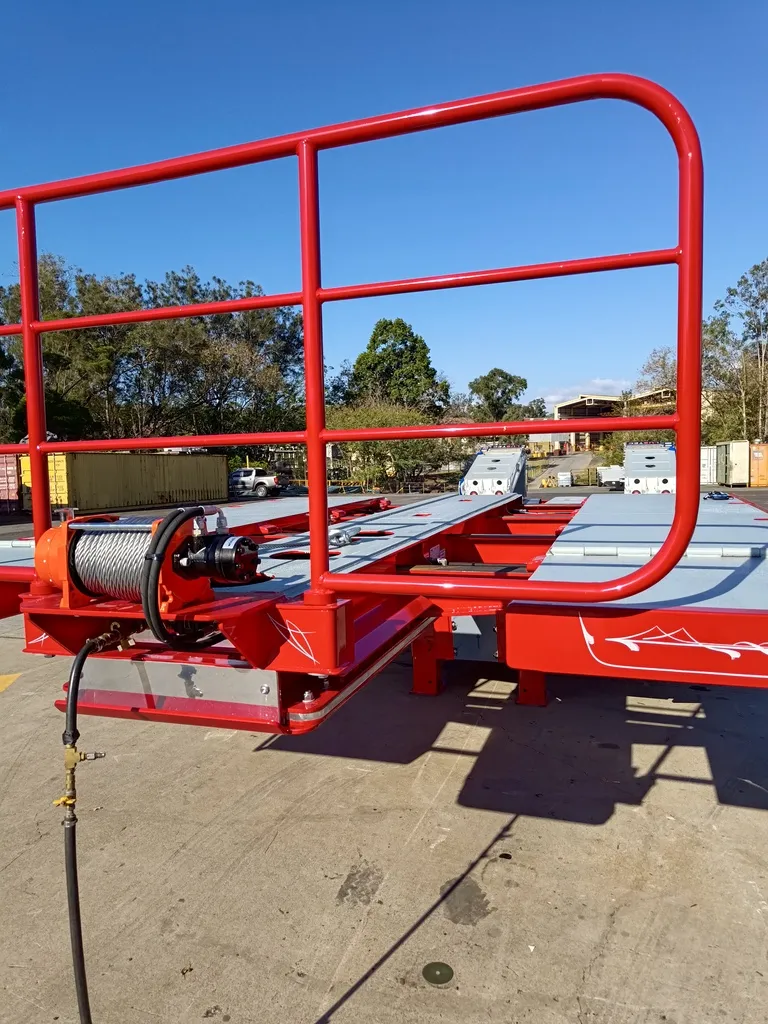

Winches
Selection from a range of different size winches and mounting locations

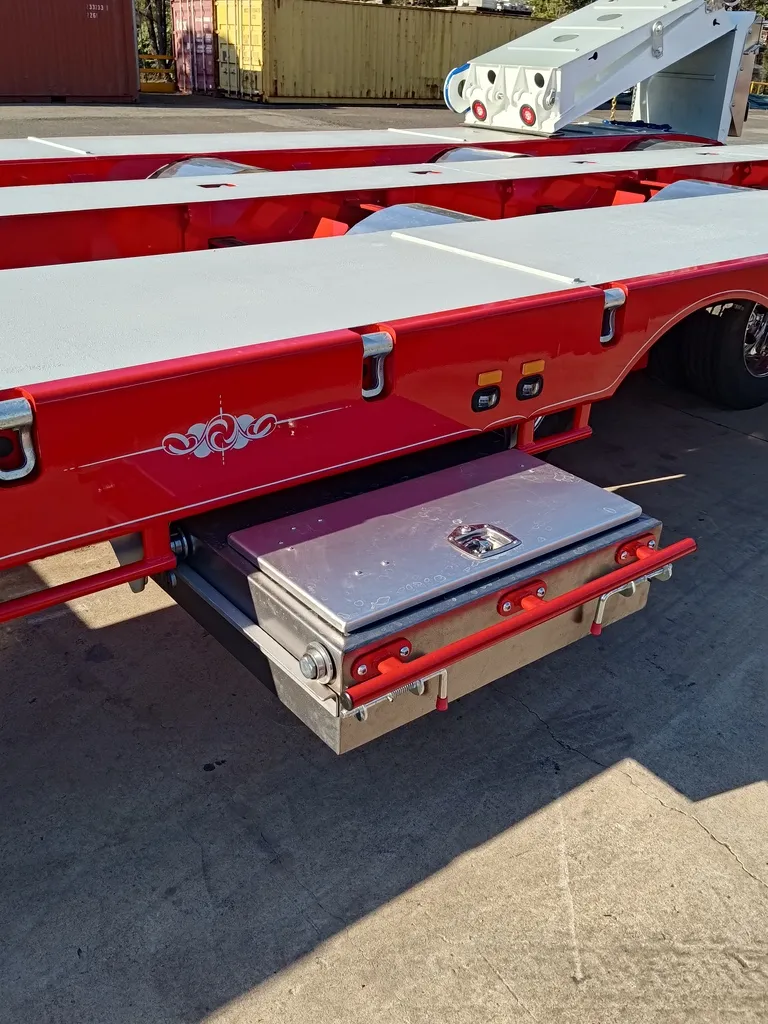

Tool Boxes
Additional tool boxes can be spec'd including both small and large draw style tool boxes. Small draw style tool box pictured
Ramps
Bi-fold as standard. Tri-fold also available as an option
Deck Widening
Widening to 4.2m, and fully rated at maximum width

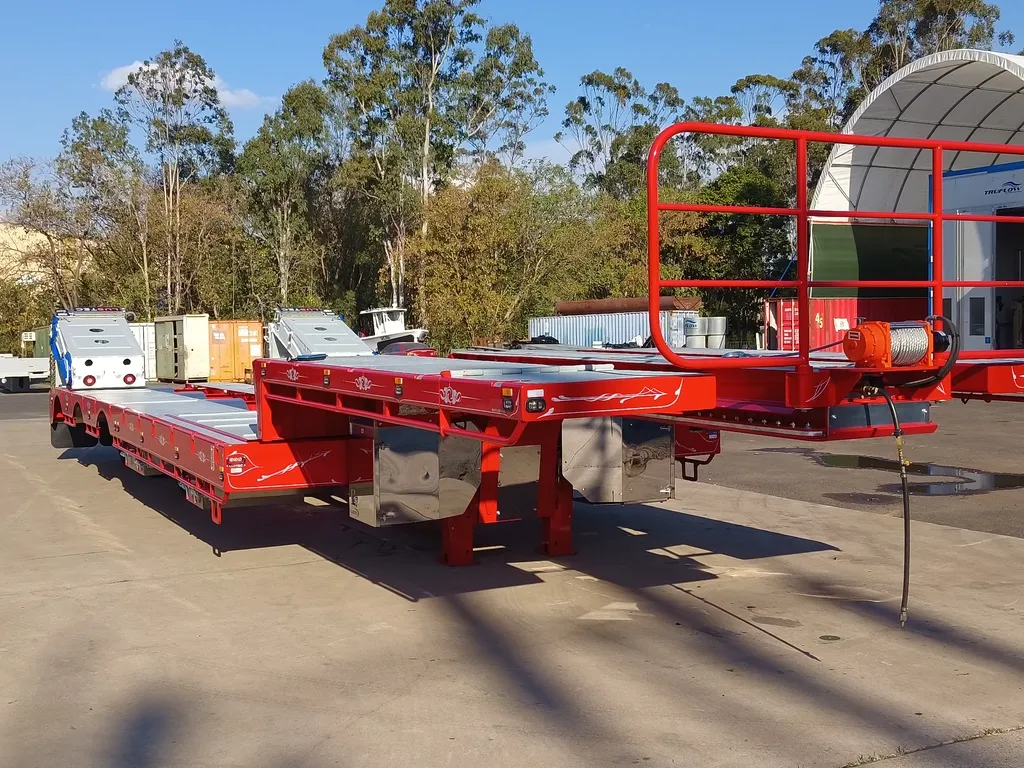

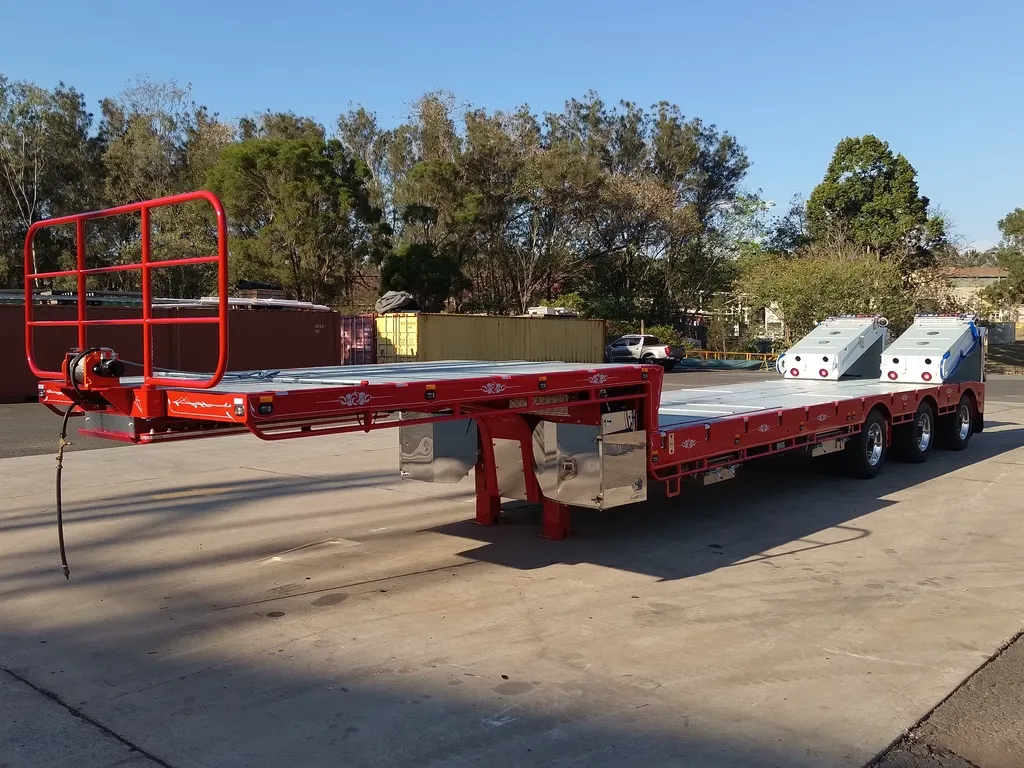

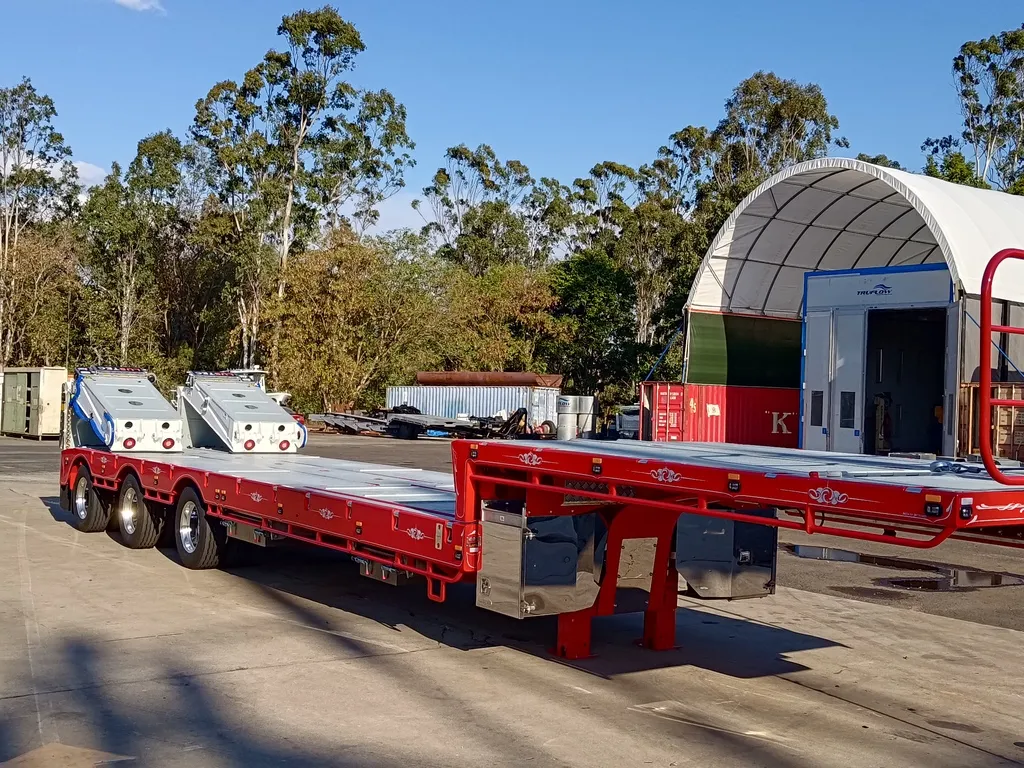

MODEL 557 GALLERY
