MODEL TRI AXLE LOW LOADER

MODEL 515

3X4 DROP DECK WIDENER - NARROW SPREAD
Maximum Trailer Capactity
45,000Kg
Legal Payload on Tri Group
25,000Kg
Widening and Weights
Decks widen to 3.7m and are fully rated at maximum width.
Approx. Tare Weight
11.8 - 13.5 tonnes, depending on options fitted
ENQUIRE NOW
PLAY VIDEO

Delivery

Wnch Head Board

STANDARD INCLUSIONS

Decks widen to 3.7m and are fully rated at maximum width.
ENQUIRE NOW
Gooseneck
Single drop in king pin non-oscillating skid plate with fold over decks and fold down ramps

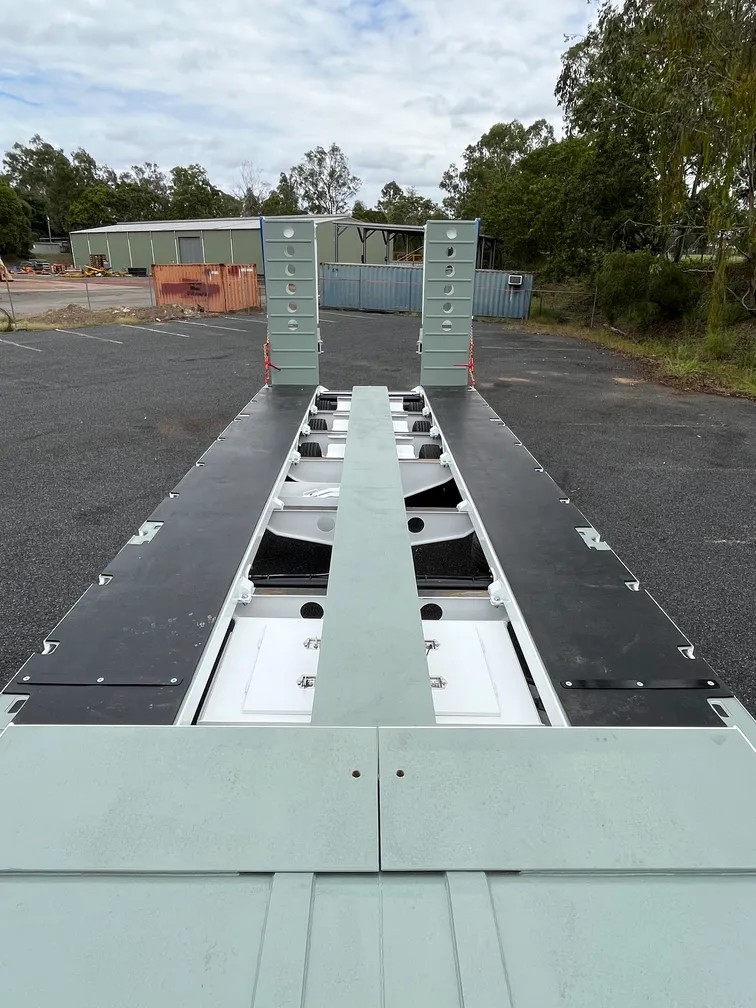

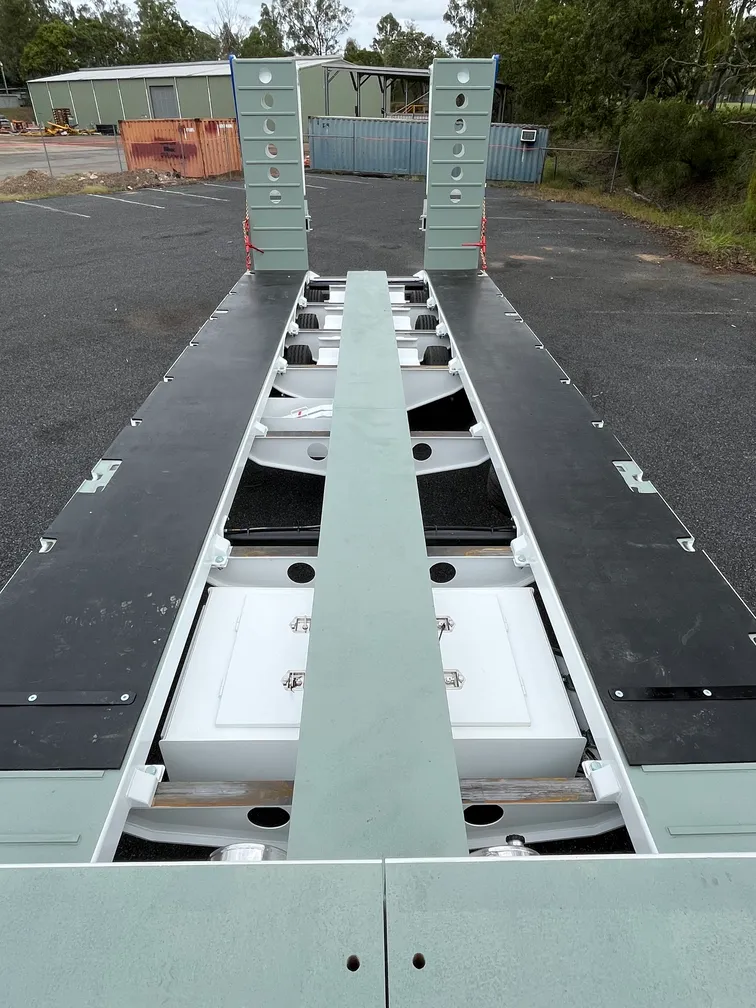

Main Deck
920mm wide outer decks allow the trailer to widen from 2.5m to 3.7m using hydraulic phasing cylinders

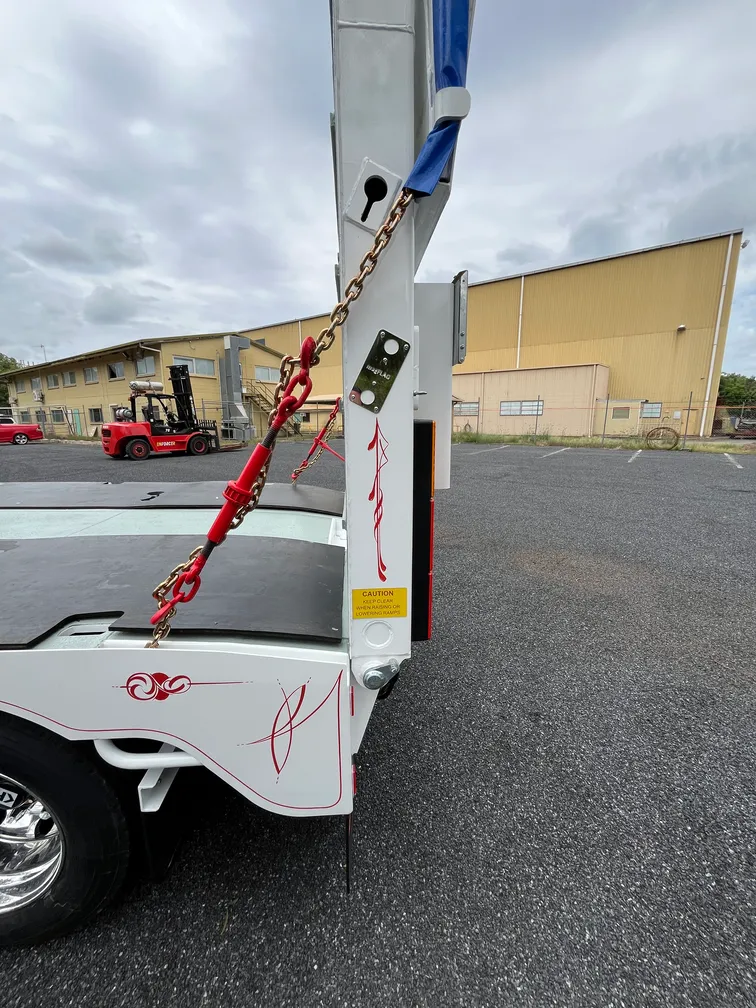

Tie Down Points
Equipped with rope rail tie points recessed into the coaming

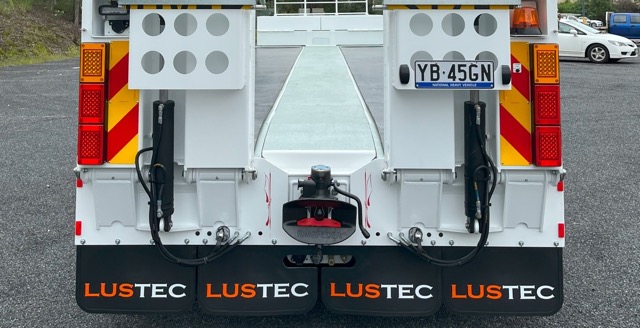

Ringfeder Bracket
Equipped with bracket only. Hydraulic, air and electrical lines run to the bracket bulkhead

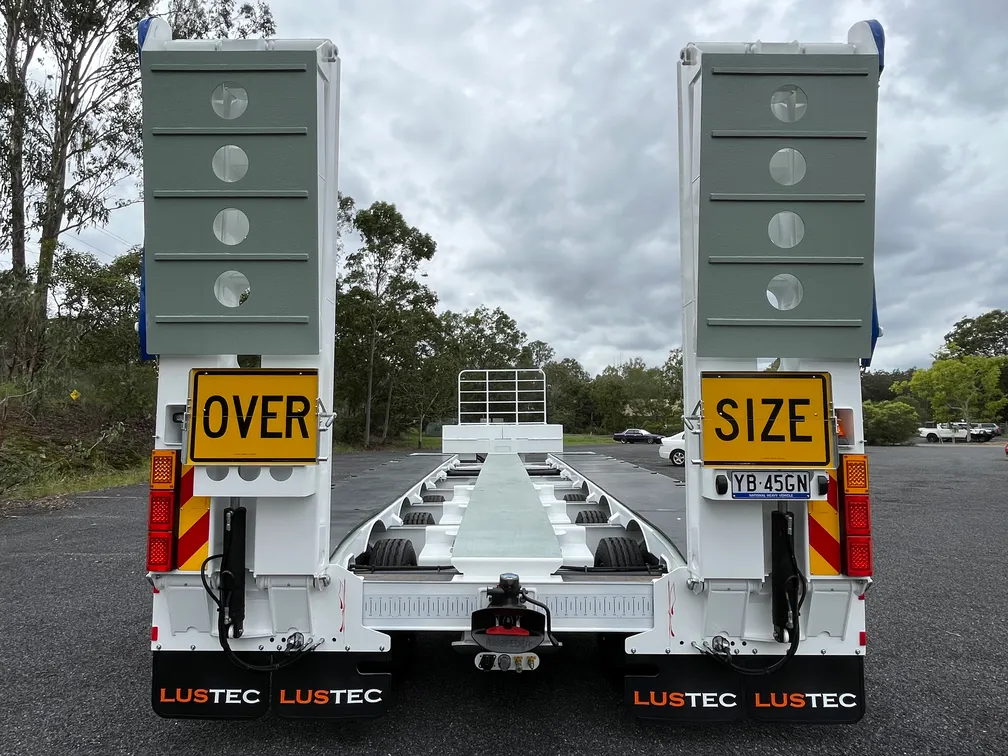

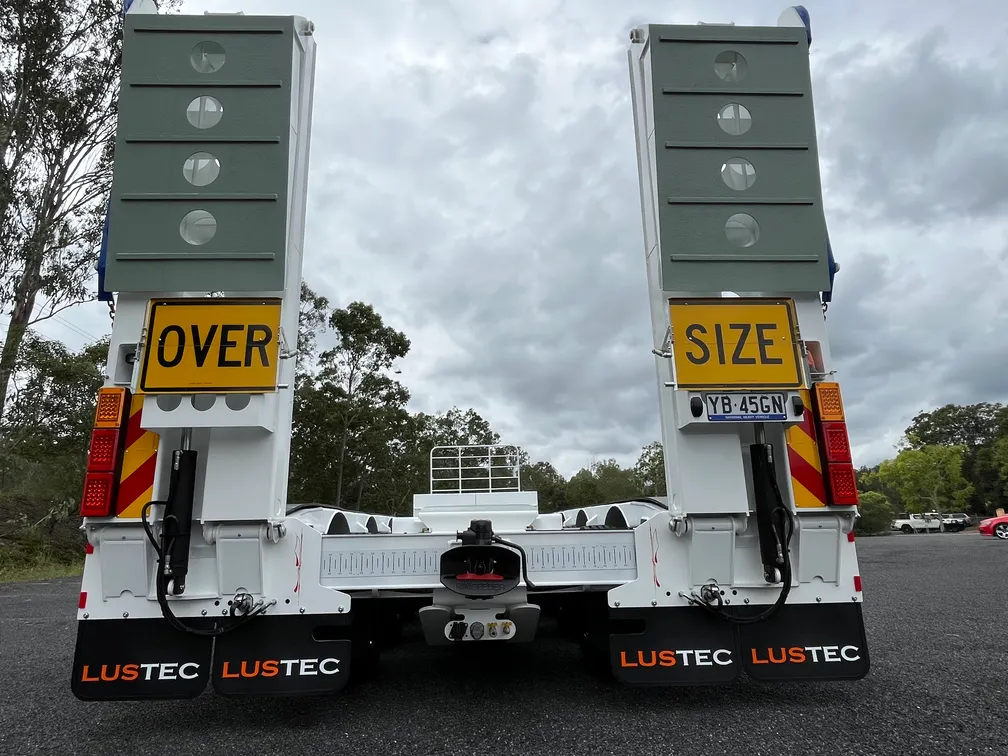

Ramps
Bi-fold - fabricated from Grade 700 plate with 25mm x 12mm grip lugs
Legs
Manual landing legs
Axles & Suspension
K-Hitch air bag suspension with K-Hitch drum brake axles
Hydraulic Pressure
Kohler Petrol 7HP

CUSTOMISE OPTIONS

We Have A Large Range Of Options To Personalise Your New Lustec Float. Please Talk To Our Team About Any Requests You May Have. Listed Below Is A Small Sample Of What We Can Do.
Lighting
Extra Side Lights. Led Work Lights
Top of Decks

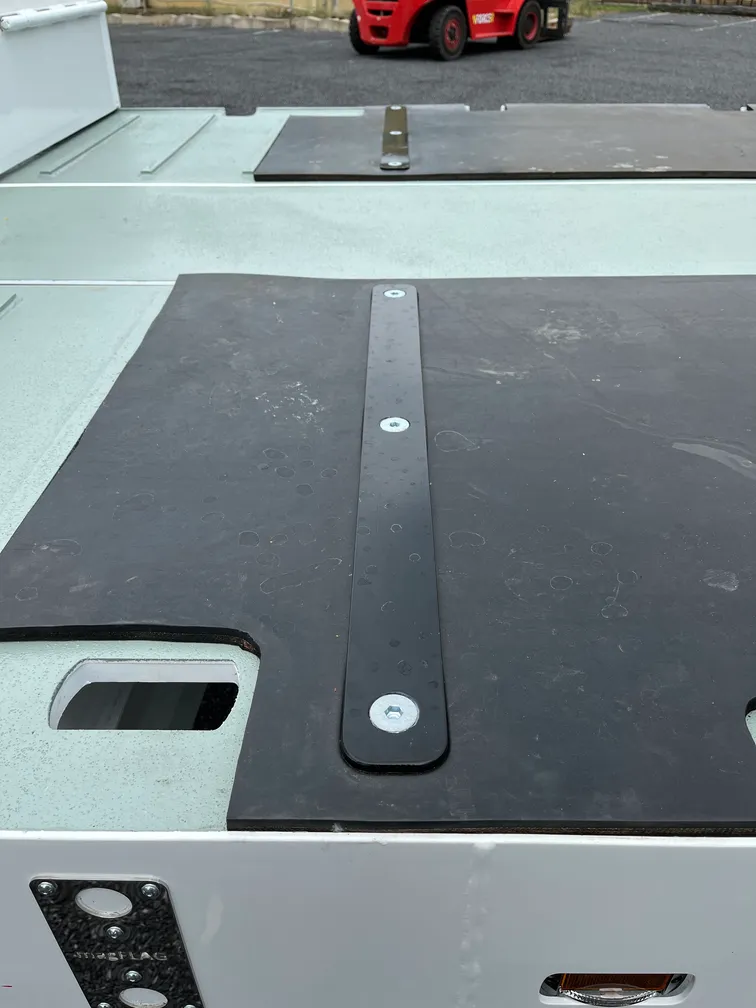

Extra Tie Down Points. Rubber On Decks. Drop Wells With Removable Infill Panels
Winches
Selection From A Range Of Different Size Winches And Mounting Locations
Tool Boxes
Additional Tool Boxes Can Be Spec’d Including Both Small And Large Draw Style Tool Boxes. Small Draw Style Tool Box Pictured
Ramps
Bi-fold as standard. Tri-fold also available as an option

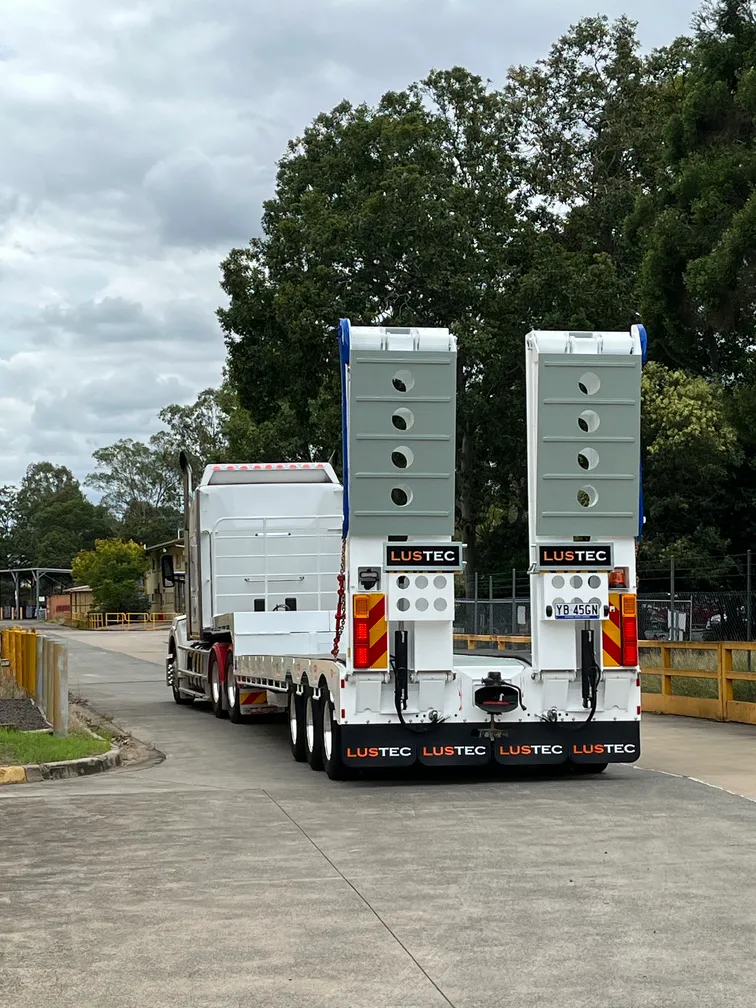

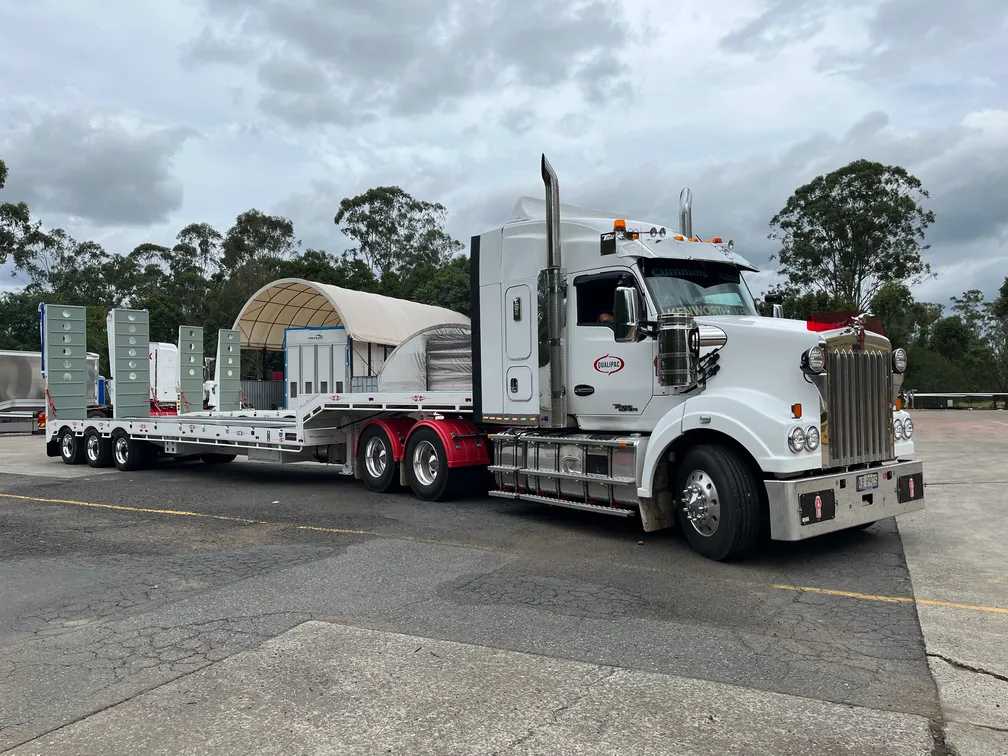

MODEL 515 GALLERY
